OPERATING CHARACTERISTICS
| MODELS | CZ-7100 | CZ-7110 | CZ-7310 | CZ-7311 | CZ-7312 | CZ-7120 | CZ-7140 | CZ-7121 | CZ-7141 | CZ-7124 | CZ-7144 | CZ-7166 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OF (max.) | 600g | 600g | 600g | 600g | 600g | 150g | 220g | 180g | 240g | 200g | 280g | 120g |
| RF (min.) | 100g | 100g | 100g | 100g | 100g | 40g | 60g | 50g | 80g | 60g | 100g | 100g |
| PT (min.) | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 2.0mm | 13.5mm | 8.5mm | 11.00mm | 6.5mm | 11mm | 6.5mm | 250mm |
| OT (min.) | 0.8mm | 0.8mm | 6.0mm | 6.0mm | 6.0mm | 4.0mm | 2.5mm | 3.0mm | 2.0mm | 3.0mm | 2.0mm | 11mm |
| MD (min.) | 0.8mm | 0.8mm | 0.8mm | 0.8mm | 0.8mm | 3.2mm | 2.0mm | 2.4mm | 1.5mm | 2.4mm | 1.5mm | - |
| OP | 30.5 ± 0.8mm | 44 ± 1.2mm | 21.8 ± 1.2mm | 33.3 ± 1.2mm | 33.3 ± 1.2mm | 25 ± 1mm | 25 ± 1mm | 40 ± 1mm | 40 ± 1mm | 50 ± 1.2mm | 50 ± 1.2mm | - |
| FP | - | - | - | - | - | - | 35mm | 32mm | - | 46mm | - | 56mm |
FEATURES
- Various actuators and some with adjustable operating position(such as CZ-7121)
- Shell covered with intensive plastic for water-proof and oil-proof. The mechanical strength is better than CM series of micro switches
RATINGS
| RATED VOLTAGE | NONINDUCTIVE LOAD (A) | INDUCTIVE LOAD (A) | ||||||
| RESISTANCE LOAD | LAMP LOAD | INDUCTIVE LOAD | MOTOR LOAD | |||||
| NC | NO | NC | NO | NC | NO | NC | NO | |
| 125VAC | 10 | 10 | 3 | 1.5 | 10 | 10 | 5 | 2.5 |
| 250VAC | 10 | 10 | 2.5 | 1.25 | 10 | 10 | 3 | 1.5 |
| 480VAC | 6 | 6 | 1.5 | 0.75 | 2.5 | 2.5 | 1.5 | 0.75 |
| 8VDC | 10 | 10 | 3 | 1.5 | 6 | 6 | 6 | 5 |
| 14VDC | 10 | 10 | 3 | 1.5 | 6 | 6 | 6 | 5 |
| 30VDC | 8 | 8 | 3 | 1.5 | 6 | 6 | 6 | 2.5 |
| 125VDC | 0.5 | 0.5 | 0.4 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 |
| 250VDC | 0.25 | 0.25 | 0.2 | 0.2 | 0.03 | 0.03 | 0.03 | 0.03 |
CHARACTERISTICS
| OPERATION SPEED | 0.5mm-50cm/sec |
| OPERATING FREQUENCY | Mechanical: 120 operations/minute Electical: 30 operations/minute |
| CONTACT RESISTANCE | 15mΩ max (initial value) |
| INSULATION RESISTANCE | 100mΩ min. (at 500VDC) |
| DIELECTRIC STRENGTH | 100VAC, 50/60 Hz for 1 minute between terminals of the same polarity |
| 1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
| 1500VAC, 50/60 Hz for 1 minute between each terminal and ground | |
| VIBRATION | Action:10 to 55Hz, 1.5mm pairs swing |
| SHOCK | Mechanical durable :1,000m/Sec² (about 100G'S) |
| Malfunction: 300m/Sec² (about 30G'S) | |
| OPERATION TEMPERATURE | -10~+80℃ (with no icing) |
| HUMIDITY | < 95% RH |
| LIFE SPAN | Mechanical: 10,000,000 operations above (under rated OT) |
| Electrical: 500,000 operations above | |
| WEIGHT | About 60g |
NOTES:
- Inductive load has a power factor of 0.4 min. (AC) and a time constant of 7 msec.max.(DC).
- Lamp load has an inrush current of 10 times the steady-state current,while motor load has an inrush current of 6 times the steady-state current.
- Product with spring, its usable range of operating part is within one third of the whole spring length form the front end of spring.

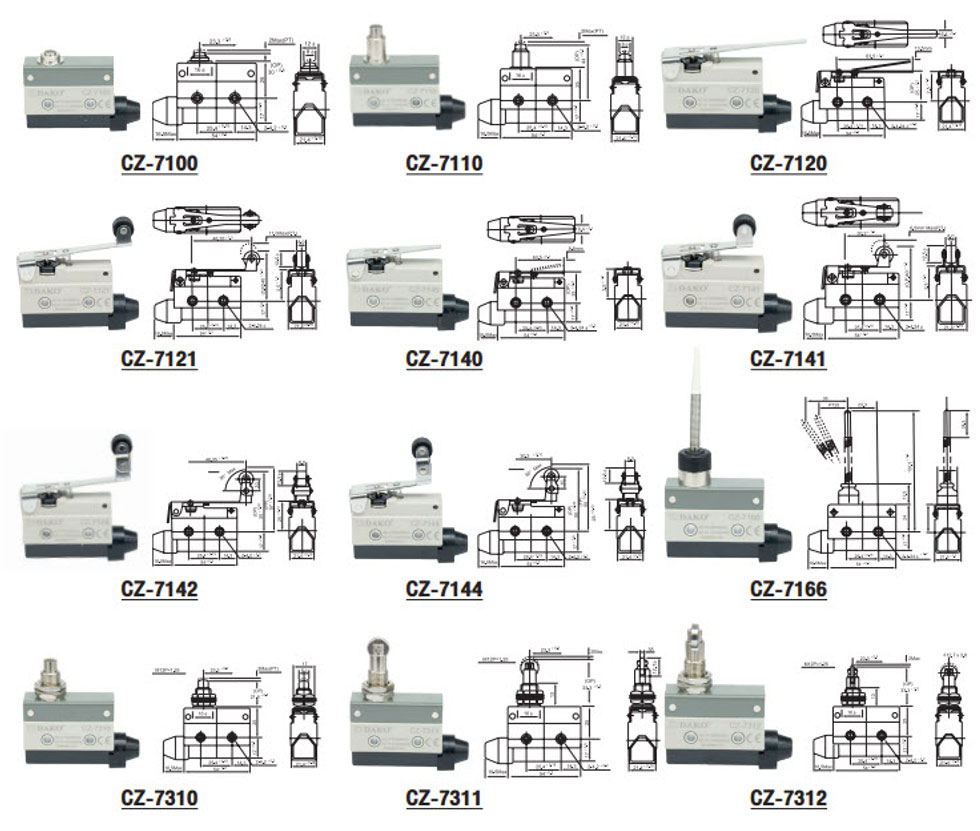

| MODEL | ลักษณะสินค้า/การใช้งาน | RATED CURRENT / VOLTAGE | CONTACT TYPE | TERMINAL TYPE | PACKING PCS/BOX | PRICE |
|---|---|---|---|---|---|---|
| CZ-7100 | Short Push Plunger | 10A / 250V | SPDT 1NO 1NC | SCREW TYPE | 10 | 205.- |
| CZ-7110 | Push Plunger | 10A / 250V | SPDT 1NO 1NC | 10 | 210.- | |
| CZ-7120 | Hinge Lever | 10A / 250V | SPDT 1NO 1NC | 10 | 195.- | |
| CZ-7121 | Roller Plunger | 10A / 250V | SPDT 1NO 1NC | 10 | 195.- | |
| CZ-7124 | One-way Roller Lever | 10A / 250V | SPDT 1NO 1NC | 10 | 225.- | |
| CZ-7140 | Hinge Short Lever | 10A / 250V | SPDT 1NO 1NC | 10 | 195.- | |
| CZ-7141 | Short Roller Lever | 10A / 250V | SPDT 1NO 1NC | 10 | 195.- | |
| CZ-7144 | One-way Short Roller Lever | 10A / 250V | SPDT 1NO 1NC | 10 | 225.- | |
| CZ-7166 | Flexible rod | 10A / 250V | SPDT 1NO 1NC | 10 | 290.- | |
| CZ-7310 | Panel mount push plunger | 10A / 250V | SPDT 1NO 1NC | 10 | 230.- | |
| CZ-7311 | Panel mount push plunger | 10A / 250V | SPDT 1NO 1NC | 10 | 250.- | |
| CZ-7312 | Panel mount cross roller plunger | 10A / 250V | SPDT 1NO 1NC | 10 | 250.- |
ราคาข้างต้นอาจเปลี่ยนแปลงได้โดยไม่ต้องแจ้งให้ทราบล่วงหน้า
Prices are subjected to change without prior notice

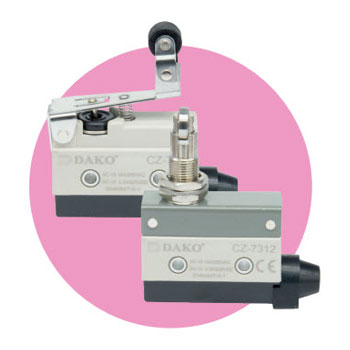

โฮมไฟฟ้า จำหน่าย ไมโครสวิทช์ CZ-7 Series (Micro Switch) คุณภาพสูงจาก DAKO อุปกรณ์ไฟฟ้าที่ใช้สำหรับควบคุมวงจร ตรวจจับการเคลื่อนที่หรือการกดเพื่อตัด–ต่อสัญญาณไฟฟ้าในเครื่องจักรและระบบอัตโนมัติ ดีไซน์ขนาดเล็ก แต่ทำงานได้แม่นยำและทนทานสูง
หากคุณกำลังมองหา ไมโครสวิทช์ DAKO CZ-7 Series ราคาถูก, Micro Switch คุณภาพมาตรฐาน, หรือ สวิทช์ตรวจจับขนาดเล็กสำหรับงานอุตสาหกรรม ติดต่อ โฮมไฟฟ้า โทร. 092-257-5557 เรามีสินค้าในสต็อก พร้อมบริการจัดส่งรวดเร็ว ครอบคลุมพื้นที่ ประชาอุทิศ ทุ่งครุ พระประแดง และพื้นที่ใกล้เคียง
